LM 1012T 10.1″ LoopMeeting panel

Specifications

FunctionSpecification
Processor / Ram / Flash: RK3288 Quad Core, 1,8Ghz / 2GB RAM / 8GB Flash
Require additional software: No, communicates directly with scheduling system
– Exchange / Office365
– LoopBooking
– Google Suite
License cost: Lifetime license included
Local Setup Mode: Yes, directly on panel
USB Setup Mode: Yes
Central Setup and Management Mode: Yes
Screen Size: 10,1″ IPS LCD
Touch screen: Yes, 10 point captive touch screen
LED Light: Yes
Warranty: 2 years
Operation System: Android 6.0 (Android 8.1 from Feb. 2020)
Time Sync: Default Android NTP or Custom NTP
LAN POE: Yes (IEEE802.3 AT /AF) – 15 Watt average power consumption
Wifi: Yes
Aspect Ratio: 16:10
Resolution: 1280×800
Contrast Ratio / Brightness: 800:1 300cd/m2
Dimentions (WxHxD): 273,7mm X 189,7mm X 30,2mm
Management: With LoopMeeting Central Config
Optional external power: Yes, shipped with unit
Viewing Angle: 85/85/85/85 (L/R/U/D)
Mounting Kit: Wall and glass mount included (VESA 75mmx75mm)

Panel Software Features

Panel Software FeaturesLoopMeeting
Supported scheduling services: Exchange 2010, 2013, 2016, 2019
– Office 365
– Google Suite
– LoopBooking – (Standalone booking system)
Require additional software: No, communicates directly with schedulig service
Custom Logo: Yes
Custom Background picture / Theme: Yes
End Now: Yes
Confirm meeting start – custom timeout for autoend meeting if not confirmed:Yes, 5, 10, 15, 20, 30 and 45 minutes or disable
Extend Meeting: Yes
Schedule future meetings: Yes
Room Equipment and Size: Yes
Report room equipment failure: Yes
Time/Date: Yes
Book meeting on other rooms: Yes
Show meeting status on other roomsYes
Show next meeting: Yes
Meeting room status color codes: Yes, Green, Red and Yellow
Custom name on instant booked meetings: Yes
Toggle enable/disable end/change/book meeting: Yes
Language support: English, Norwegian, Nynorsk, Swedish, Danish, Finish, German, French, Dutch, Italian, Spanish, Catalan, Portuguese, Russian, Latvian, Hungarian, Turkish, Polish
Screensaver – set working hours: Yes
Portrait and Landscape mode: Yes
Overview screen for reception: Yes, requires LoopSign subscription
License model: Perpetual license – Lifetime license (If the panel hardware breaks after warrant, you can reuse the license on new panel)
Local Setup Mode: Yes, directly on panel
USB Setup Mode: Yes
Central Setup and Management Mode: Yes, web based console

LM 1032T 10.1″ LoopMeeting panel

Specifications

FunctionSpecification
Processor / Ram / Flash: RK3288 Quad Core, 1,8Ghz / 2GB RAM / 16GB Flash
Require additional software: No, communicates directly with scheduling system
– Exchange / Office365
– LoopBooking
– Google Suite
License cost: Lifetime license included
Local Setup Mode: Yes, directly on panel
USB Setup Mode: Yes
Enterprise Setup Mode: Yes, only need code and password.
Screen Size: 10,1″ IPS LCD
Touch screen: Yes, 10 point captive touch screen
LED Light: Yes
Warranty: 2 years
Operation System: Android 8.1
Time Sync: Default Android NTP or Custom NTP
LAN POE: Yes (IEEE802.3 AT) – 15 Watt average power consumption
Wifi: Yes
Aspect Ratio: 16:10
Resolution: 1280×800
Contrast Ratio / Brightness: 800:1 280cd/m2
Dimentions (WxHxD): 275,36mm X 170,36mm X 25mm
Management: With LoopMeeting Central Config
Optional external power: Yes, shipped with unit
NFC: Yes
Mounting Kit: Wall and glass mount included
View Angle: 85/85/85/85 (L/R/U/D)

Panel Software Features

Panel Software FeaturesLoopMeeting
Supported scheduling services: Exchange 2010, 2013, 2016, 2019
– Office 365
– Google Suite
– LoopBooking – (Standalone booking system)
Require additional software: No, communicates directly with schedulig service
Custom Logo: Yes
Custom Background picture / Theme: Yes
End Now / Stop current meeting: Yes
Confirm meeting start – custom timeout for autoend meeting if not confirmedYes, 5, 10, 15, 20, 30 and 45 minutes or disable
Extend Meeting: Yes
Schedule future meetings: Yes
Room Equipment and Size: Yes
Report room equipment failure: Yes
Time/Date: Yes
Book meeting on other rooms: Yes
Show meeting status on other rooms: Yes
Show next meeting: Yes
Meeting room status color codes: Yes, Green, Red and Yellow
Custom name on instant booked meetings: Yes
Toggle enable/disable end/change/book meeting: Yes
Language support: English, Norwegian, Nynorsk, Swedish, Danish, Finish, German, French, Dutch, Italian, Spanish, Catalan, Portuguese, Russian, Latvian, Hungarian, Turkish, Polish, Faroe Islands
Screensaver – set working hours: Yes
Screensaver – set working hours: Yes
Overview screen for reception: Yes, requires LoopSign subscription
License model: : Perpetual license – Lifetime license (If the panel hardware breaks after warrant, you can reuse the license on new panel)
Local Setup Mode: Yes, directly on panel
USB Setup ModeYes
USB Setup ModeYes

LoopMeeting Application

LoopMeeting is a native Android app, running on Android 4.4 or higher.

  • Easy and intuitive interface with professional look and feel
  • Makes it easy to find and book an available meetingroom
  • Very easy to configure and customize
  • Runs in both landscape and portrait mode

LoopMeeting – How to use the application

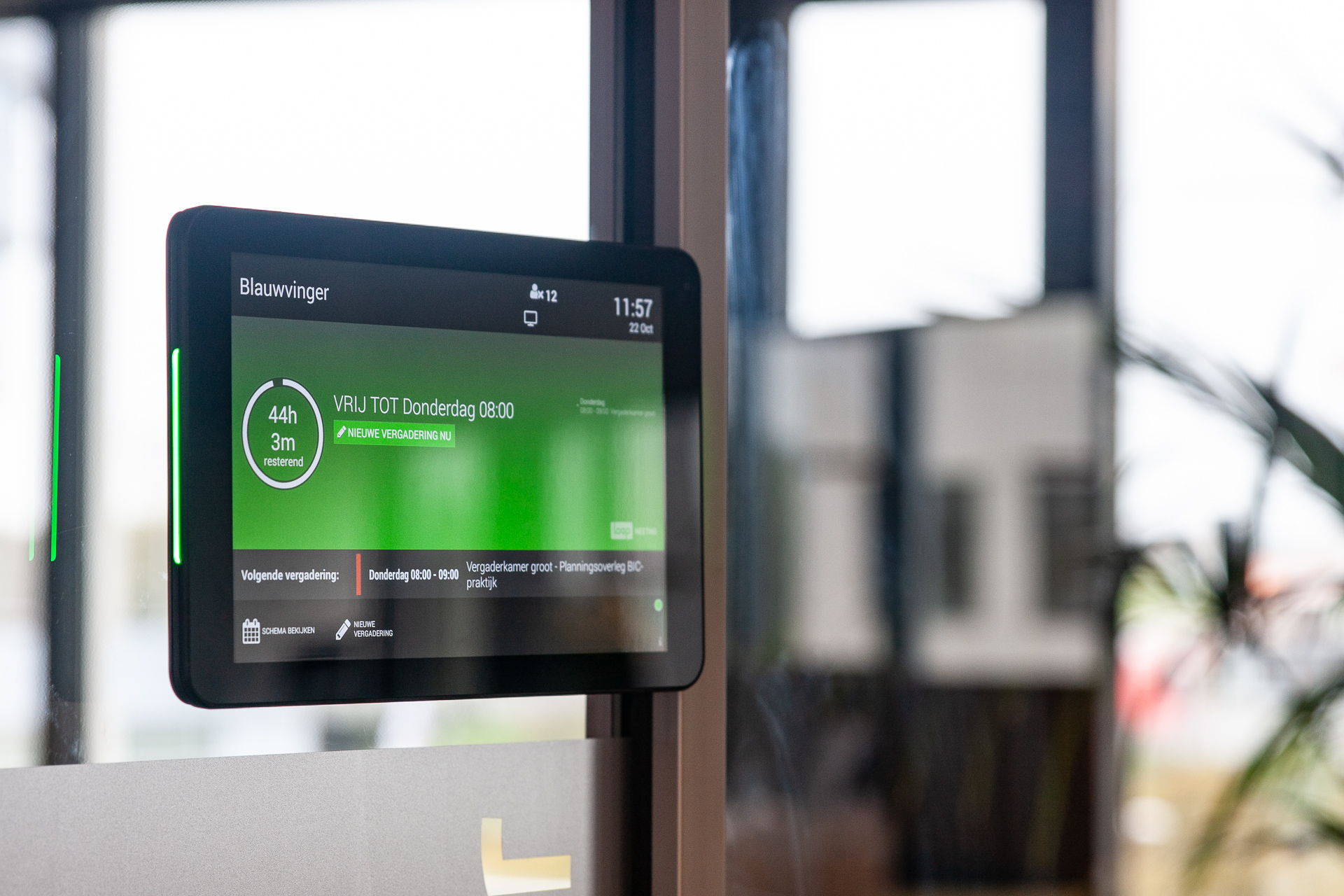

Green LoopMeeting panel
Green indicates room is free
Red panel for LoopMeeting
Red indicates room is occupied
Yellow LoopMeeting panel
Yellow indicates 10 minutes or less remaining
Panel overview
Use Multiroom view to see status on other rooms
Customize logo and background
Easy accessable configuration on the panel
Easy accessable configuration on the panel
Initial configuration options (Local setup, Central Setup or import from USB)
Initial configuration options
LoopMeeting dashboard
LoopMeeting Central Administration console (Cloud Based web site)
Meeting room overview screens
(Requires LoopSign)

Specifications

Panel Software FeaturesLoopMeeting
Supported scheduling services: Exchange 2010, 2013, 2016,2019
– Office 365
– Google G Suite
– LoopBooking – (Standalone booking system) https://loopbooking.no
Require additional software: No, communicates directly with schedulig service
Custom Logo: Yes
Custom Background picture / Theme:Yes
End Now: Yes
Confirm meeting start – custom timeout for autoend meeting if not confirmed: Yes, 5, 10, 15, 20, 30 and 45 minutes or disable
Extend Meeting: Yes
Schedule future meetings: Yes
Room Equipment and Size: Yes
Report room equipment failure: Yes
Time/Date: Yes
Book meeting on other rooms: Yes
Show meeting status on other rooms: Yes
Show next meeting: Yes
Meeting room status color codes: Yes, Green, Red and Yellow
Custom name on instant booked meetings: Yes
Toggle enable/disable end/change/book meeting: Yes
Language support: English, Norwegian, Swedish, Danish, Finish, German, French, Dutch, Italian, Spanish, Catalan, Portuguese, Russian, Latvian, Hungarian, Turkish.
Screensaver – set working hours: Yes
Portrait and Landscape mode: Yes
Overview screen for reception: Yes, requires LoopSign subscription
License model: Perpetual license – Lifetime license (If the panel hardware breaks after warrant, you can reuse the license on new panel)
Local Setup Mode: Yes, directly on panel
USB Setup Mode: Yes
Enterprise Setup Mode: Yes, only need code and password.
